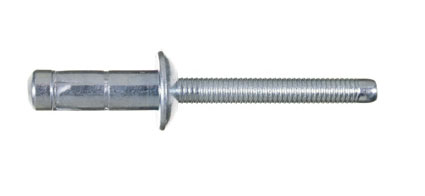

  • Super Orlock™ Steel Protruding Head Rivets
Rear Frame
When extra-high forces are required, the Super Orlock™ is the solution. The Super Orlock™ offers higher shear and tensile strengths and a wider grip range.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Super Orlock™ 10.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 10.5 mm0.413 in N/A 2.0 mm0.079 in N/A 4.5 mm0.177 in N/A 1100 kgf2420 lbf
N/A Super Orlock™ 12.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 12.5 mm0.492 in N/A 3.0 mm0.118 in N/A 6.5 mm0.256 in N/A 1250 kgf2750 lbf
N/A Super Orlock™ 14.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 14.5 mm0.571 in N/A 5.0 mm0.197 in N/A 8.5 mm0.335 in N/A 1400 kgf3080 lbf
N/A Super Orlock™ 16.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 16.5 mm0.650 in N/A 7.0 mm0.276 in N/A 10.5 mm0.413 in N/A 1450 kgf3190 lbf
N/A Super Orlock™ 18.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 18.5 mm0.728 in N/A 9.0 mm0.354 in N/A 12.5 mm0.492 in N/A 1570 kgf3454 lbf
N/A Super Orlock™ 20.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 20.5 mm0.807 in N/A 11.0 mm0.433 in N/A 14.5 mm0.571 in N/A 1570 kgf3454 lbf
N/A Super Orlock™ 22.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 22.5 mm0.886 in N/A 13.0 mm0.512 in N/A 16.5 mm0.650 in N/A 1570 kgf3454 lbf
