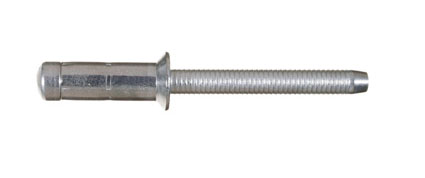

  • Orlock™ Stainless Steel 100 Degree Countersunk Head Rivets
Rear Frame
The Orlock™ Stainless Steel fastener is commonly used by various trailer manufacturers worldwide. This stainless steel fastener creates a permanent, secure joint in the most severe climate conditions. Also available in 316.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 13.5 Millimeter (mm) Body Length Stainless Steel 100 Degree Countersunk Head Rivet N/A 13.5 mm0.531 in N/A 4.8 mm0.189 in N/A 7.8 mm0.307 in N/A 1100 kgf2867 lbf
N/A Orlock™ 15.5 Millimeter (mm) Body Length Stainless Steel 100 Degree Countersunk Head Rivet N/A 15.5 mm0.610 in N/A 6.8 mm0.268 in N/A 9.8 mm0.386 in N/A 1300 kgf2860 lbf
N/A Orlock™ 17.5 Millimeter (mm) Body Length Stainless Steel 100 Degree Countersunk Head Rivet N/A 17.5 mm0.689 in N/A 8.8 mm0.346 in N/A 11.8 mm0.465 in N/A 1400 kgf3087 lbf
N/A Orlock™ 19.5 Millimeter (mm) Body Length Stainless Steel 100 Degree Countersunk Head Rivet N/A 19.5 mm0.768 in N/A 11.3 mm0.445 in N/A 13.3 mm0.524 in N/A 1400 kgf3087 lbf
