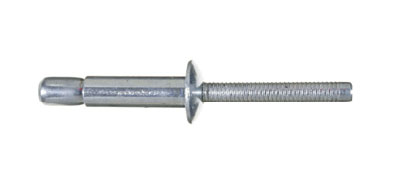

  • Ornilock Steel Protruding Head Rivets
Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Ornilock 4.8 Millimeter (mm) Diameter and 10.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 10.5 mm0.413 in N/A 1.6 mm0.063 in N/A 6.9 mm0.272 in N/A 630 kgf1386 lbf
N/A Ornilock 4.8 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 14.5 mm0.571 in N/A 5.4 mm0.213 in N/A 11.1 mm0.437 in N/A 630 kgf1386 lbf
N/A Ornilock 4.8 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 14.5 mm0.571 in N/A 1.6 mm0.063 in N/A 11.1 mm0.437 in N/A 630 kgf1386 lbf
N/A Ornilock 6.5 Millimeter (mm) Diameter and 14.2 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 14.2 mm0.559 in N/A 2.0 mm0.079 in N/A 9.5 mm0.374 in N/A 1250 kgf2750 lbf
N/A Ornilock 6.5 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 20.5 mm0.807 in N/A 8.9 mm0.350 in N/A 15.9 mm0.626 in N/A 1250 kgf2750 lbf
N/A Ornilock 6.5 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 20.5 mm0.807 in N/A 2.0 mm0.079 in N/A 15.9 mm0.626 in N/A 1250 kgf2750 lbf
N/A Ornilock 6.5 Millimeter (mm) Diameter and 27.0 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 27.0 mm10.063 in N/A 15.9 mm0.626 in N/A 22.5 mm0.886 in N/A 1250 kgf2750 lbf
N/A Ornilock 6.5 Millimeter (mm) Diameter and 27.0 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 27.0 mm10.063 in N/A 8.9 mm0.350 in N/A 22.5 mm0.886 in N/A 1250 kgf2750 lbf
N/A Ornilock 7.8 Millimeter (mm) Diameter and 21.0 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 21.0 mm0.827 in N/A 3.0 mm0.118 in N/A 14.5 mm0.571 in N/A 1600 kgf3520 lbf
N/A Ornilock 7.8 Millimeter (mm) Diameter and 30.0 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 30.0 mm10.181 in N/A 14.0 mm0.551 in N/A 23.0 mm0.906 in N/A 1600 kgf3520 lbf
N/A Ornilock 9.8 Millimeter (mm) Diameter and 21.0 Millimeter (mm) Body Length Steel Protruding Head Rivet N/A 21.0 mm0.827 in N/A 3.5 mm0.138 in N/A 14.5 mm0.571 in N/A 2540 kgf5601 lbf
