Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
Unit of Measure

Technical Specs

Brands

 N/A Ornilock Ornit

Carton Quantity

 N/A 1000

Body Material

 N/A Low Carbon Steel

Body Finish

 N/A Zinc Plated Chromium (Cr) VI Free Passivation

Mandrel Material

 N/A Medium Carbon Steel

Mandrel Finish

 N/A Zinc Plated Chromium (Cr) VI Free Passivation

Head Style

 N/A Protruding

Nominal Dimensions

Diameter

 N/A 7.8 mm5/16 in

Drill/Hole Size

 N/A 8.0 to 8.3 mm0.315 to 0.327 in

Head Thickness

 N/A 3.5 mm0.140 in

Head Diameter

 N/A 16 mm0.630 in

Mandrel Diameter

 N/A 5.10 mm0.200 in

Body Length

 N/A 21.0 mm0.827 in

Minimum Grip Range

 N/A 3.0 mm0.118 in

Maximum Grip Range

 N/A 14.5 mm0.571 in

Nominal Forces

Nominal Shear Force

 N/A 1600 kgf3520 lbf

Nominal Tensile Force

 N/A 1000 kgf2205 lbf

Applications

Renewable Energy Application

 N/A Solar Frames

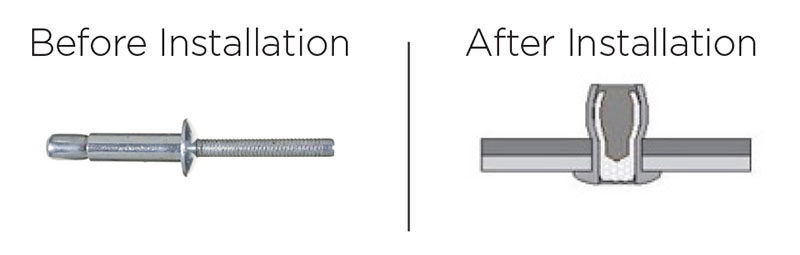

This extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
