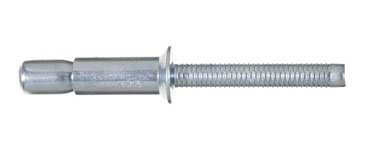

  • Ornilock Steel 100 Degree Countersunk Head Rivets
Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Diameter

Drill/Hole Size

Head Thickness

Head Diameter

N/A Ornilock Steel 12.3 Millimeter (mm) Body Length 100 Degree Countersunk Head Rivet N/A 4.8 mm3/16 in N/A 4.9 to 5.1 mm0.192 to 0.200 in N/A 1.80 mm0.071 in N/A 8.6 mm0.339 in
N/A Ornilock Steel 16.5 Millimeter (mm) Body Length 100 Degree Countersunk Head Rivet N/A 4.8 mm3/16 in N/A 4.9 to 5.1 mm0.192 to 0.200 in N/A 1.80 mm0.071 in N/A 8.6 mm0.339 in
N/A Ornilock Steel 16.7 Millimeter (mm) Body Length 100 Degree Countersunk Head Rivet N/A 6.5 mm1/4 in N/A 6.62 to 6.9 mm0.260 to 0.271 in N/A 2.00 mm0.079 in N/A 10.0 mm0.394 in
N/A Ornilock Steel 23.0 Millimeter (mm) Body Length 100 Degree Countersunk Head Rivet N/A 6.5 mm1/4 in N/A 6.62 to 6.9 mm0.260 to 0.271 in N/A 2.00 mm0.079 in N/A 10.0 mm0.394 in
