Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
Unit of Measure

Technical Specs

Brands

 N/A Ornilock Ornit

Carton Quantity

 N/A 4000

Head Style

 N/A 100 Degree Countersunk

Body Material

 N/A Low Carbon Steel

Body Finish

 N/A Zinc Plated Chromium (Cr) VI Free

Mandrel Material

 N/A Medium Carbon Steel

Mandrel Finish

 N/A Zinc Plated Chromium (Cr) VI Free

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 4.9 to 5.1 mm0.192 to 0.200 in

Head Thickness

 N/A 1.80 mm0.071 in

Head Diameter

 N/A 8.6 mm0.339 in

Mandrel Diameter

 N/A 3.0 mm0.118 in

Body Length

 N/A 12.3 mm0.484 in

Minimum Grip Range

 N/A 3.2 mm0.126 in

Maximum Grip Range

 N/A 8.4 mm0.331 in

Nominal Forces

Nominal Shear Force

 N/A 630 kgf1386 lbf

Nominal Tensile Force

 N/A 545 kgf1199 lbf

Applications

Renewable Energy Application

 N/A Solar Frames

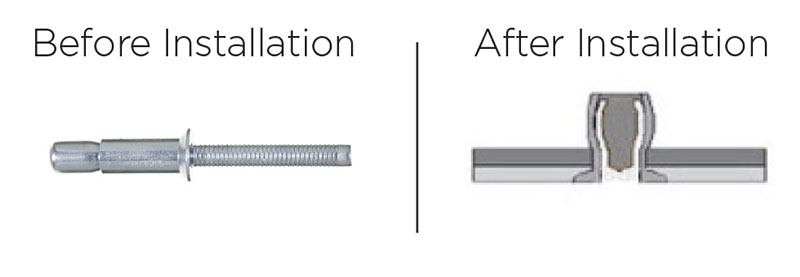

This extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
