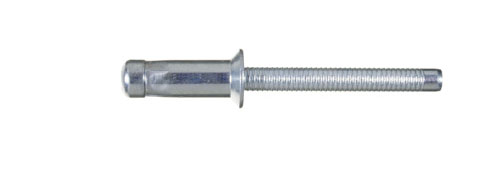

  • Orlock™ Steel 100 Degree Countersunk Head Rivets
Interior - Seats
The Orlock™ fastener is a structural rivet and features a double-locking system that enables the rivet to safely secure the seats.

Side Frame
The Orlock™ fastener is an excellent choice for your trailer frame. The Orlock™ is designed to support exceptionally high shear and tensile forces. Its retained stem provides a strong, vibration-resistant joint.

Front Frame
The Orlock™ structural rivet provides great shear and tensile forces to create a highly secure double locking system, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.

Hinges, Axis, Locking System
The Orlock™ fastener, with its double-locking system, provides high shear and tensile forces to create a highly secure, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 4.8 Millimeter (mm) Diameter and 11.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 11.5 mm0.453 in N/A 3.5 mm0.138 in N/A 6.0 mm0.236 in N/A 300 kgf660 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 14 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 14.0 mm0.551 in N/A 6.0 mm0.236 in N/A 8.5 mm0.335 in N/A 400 kgf880 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 16.5 mm0.650 in N/A 8.5 mm0.335 in N/A 11.0 mm0.433 in N/A 500 kgf1100 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 19 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 19.0 mm0.748 in N/A 11.0 mm0.433 in N/A 13.5 mm0.531 in N/A 600 kgf1320 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 11.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 11.5 mm0.453 in N/A 3.8 mm0.150 in N/A 5.8 mm0.228 in N/A 550 kgf1213 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 12.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 12.5 mm0.492 in N/A 4.8 mm0.189 in N/A 6.8 mm0.268 in N/A 650 kgf1433 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 13.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 13.5 mm0.531 in N/A 5.8 mm0.228 in N/A 7.8 mm0.307 in N/A 750 kgf1654 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 15.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 15.5 mm0.610 in N/A 7.8 mm0.307 in N/A 9.8 mm0.386 in N/A 950 kgf2095 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 17.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 17.5 mm0.689 in N/A 9.8 mm0.386 in N/A 11.8 mm0.465 in N/A 1050 kgf2315 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 19.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 19.5 mm0.768 in N/A 11.8 mm0.465 in N/A 13.8 mm0.543 in N/A 1050 kgf2315 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 21.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 21.5 mm0.846 in N/A 13.8 mm0.543 in N/A 15.8 mm0.622 in N/A 1050 kgf2315 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 23.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 23.5 mm0.925 in N/A 15.8 mm0.622 in N/A 17.8 mm0.701 in N/A 1050 kgf2315 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 17.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 17.5 mm0.689 in N/A 7.0 mm0.276 in N/A 10.0 mm0.394 in N/A 1400 kgf3087 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Steel 100 Degree Countersunk Head Rivet N/A 20.5 mm0.807 in N/A 10.0 mm0.394 in N/A 13.0 mm0.512 in N/A 1400 kgf3087 lbf
