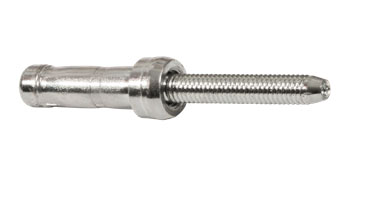

  • Mega-Orlock® 6.8 Series Triple locking system Head Rivets
Chassis
Assembling chassis requires high strength solutions. Mega-Orlock®, Ornit's latest innovation, features a patented triple-locking system, designed to provide ultra-high strengths and shear forces.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Mega-Orlock® 6.8 Series 12.5 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 12.5 mm0.492 in N/A 2.4 mm0.094 in N/A 5.6 mm0.220 in N/A 2315 kgf5100 lbf
N/A Mega-Orlock® 6.8 Series 17.5 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 17.5 mm0.689 in N/A 5.6 mm0.220 in N/A 10.4 mm0.409 in N/A 2315 kgf5100 lbf
N/A Mega-Orlock® 6.8 Series 22.5 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 22.5 mm0.886 in N/A 10.4 mm0.409 in N/A 15.1 mm0.594 in N/A 2315 kgf5100 lbf
N/A Mega-Orlock® 6.8 Series 27.5 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 27.5 mm1.083 in N/A 15.1 mm0.594 in N/A 19.9 mm0.783 in N/A 2315 kgf5100 lbf
N/A Mega-Orlock® 6.8 Series 21.0 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 21.0 mm0.827 in N/A 8 mm0.315 in N/A 11.1 mm0.437 in N/A 3200 kgf7056 lbf
N/A Mega-Orlock® 6.8 Series 24.0 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 24.0 mm0.945 in N/A 11.1 mm0.437 in N/A 14.3 mm0.563 in N/A 3200 kgf7056 lbf
N/A Mega-Orlock® 6.8 Series 27.0 Millimeter (mm) Body Length Triple Locking System Head Rivet N/A 27.0 mm1.063 in N/A 14.3 mm0.563 in N/A 17.5 mm0.689 in N/A 3200 kgf7056 lbf
