U-Fix Aluminum Steel Large Head Rivets
Email This Page
Download PDF
Download PDF
Printable Page

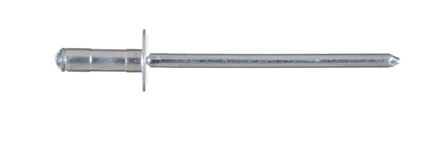

U-Fix Aluminum Steel Large Head Rivets
Standard Rivets
/Asset/a1198.jpg
Close Window
1 - 9 of 9
|
Results Per Page
25
50
100
200
|
View
|
Unit of Measure
Imperial
Metric
Both
1
Request Information
Compare Items
Item #
Item Name
Body Length
Minimum Grip Range
Maximum Grip Range
Nominal Shear Force
U32080L
/Asset/a1198.jpg
N/A
U-Fix 3.2 Millimeter (mm) Diameter and 8.0 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
8.0 mm
0.315 in
Minimum Grip Range
N/A
0.8 mm
0.031 in
Maximum Grip Range
N/A
4.8 mm
0.189 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U32095L
/Asset/a1198.jpg
N/A
U-Fix 3.2 Millimeter (mm) Diameter and 9.5 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
9.5 mm
0.374 in
Minimum Grip Range
N/A
1.2 mm
0.047 in
Maximum Grip Range
N/A
6.4 mm
0.252 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U32111L
/Asset/a1198.jpg
N/A
U-Fix 3.2 Millimeter (mm) Diameter and 11.1 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
11.1 mm
0.437 in
Minimum Grip Range
N/A
4.0 mm
0.157 in
Maximum Grip Range
N/A
7.9 mm
0.311 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U32127L
/Asset/a1198.jpg
N/A
U-Fix 3.2 Millimeter (mm) Diameter and 12.7 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
12.7 mm
0.500 in
Minimum Grip Range
N/A
5.5 mm
0.217 in
Maximum Grip Range
N/A
9.5 mm
0.374 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U40095L
/Asset/a1198.jpg
N/A
U-Fix 4.0 Millimeter (mm) Diameter and 9.5 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
9.5 mm
0.374 in
Minimum Grip Range
N/A
1.2 mm
0.047 in
Maximum Grip Range
N/A
6.4 mm
0.252 in
Nominal Shear Force
N/A
116 kgf
255 lbf
U40111L
/Asset/a1198.jpg
N/A
U-Fix 4.0 Millimeter (mm) Diameter and 11.1 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
11.1 mm
0.437 in
Minimum Grip Range
N/A
3.2 mm
0.126 in
Maximum Grip Range
N/A
7.9 mm
0.311 in
Nominal Shear Force
N/A
116 kgf
255 lbf
U40127L
/Asset/a1198.jpg
N/A
U-Fix 4.0 Millimeter (mm) Diameter and 12.7 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
12.7 mm
0.500 in
Minimum Grip Range
N/A
4.0 mm
0.157 in
Maximum Grip Range
N/A
9.5 mm
0.374 in
Nominal Shear Force
N/A
116 kgf
255 lbf
U40151L
/Asset/a1198.jpg
N/A
U-Fix 4.0 Millimeter (mm) Diameter and 15.1 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
15.1 mm
0.594 in
Minimum Grip Range
N/A
6.4 mm
0.252 in
Maximum Grip Range
N/A
11.1 mm
0.437 in
Nominal Shear Force
N/A
116 kgf
255 lbf
U40169L
/Asset/a1198.jpg
N/A
U-Fix 4.0 Millimeter (mm) Diameter and 16.9 Millimeter (mm) Body Length Aluminum Steel Large Head Rivet
Body Length
N/A
16.9 mm
0.665 in
Minimum Grip Range
N/A
6.4 mm
0.252 in
Maximum Grip Range
N/A
12.7 mm
0.500 in
Nominal Shear Force
N/A
116 kgf
255 lbf
