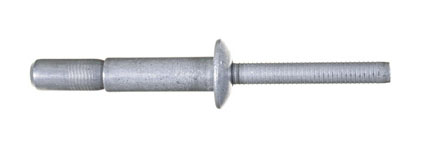

  • Ornilock Aluminum Protruding Head Rivets
Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Diameter

Drill/Hole Size

Head Thickness

Head Diameter

N/A Ornilock Aluminum 4.8 Millimeter (mm) Diameter and 10.5 Millimeter (mm) Body Length Protruding Head Rivet N/A 4.8 mm3/16 in N/A 4.9 to 5.1 mm0.192 to 0.200 in N/A 2.1 mm0.083 in N/A 9.8 mm0.386 in
N/A Ornilock Aluminum 4.8 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Protruding Head Rivet N/A 4.8 mm3/16 in N/A 4.9 to 5.1 mm0.192 to 0.200 in N/A 2.1 mm0.083 in N/A 9.8 mm0.386 in
N/A Ornilock Aluminum 4.8 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Protruding Head Rivet N/A 4.8 mm3/16 in N/A 4.9 to 5.1 mm0.192 to 0.200 in N/A 2.1 mm0.083 in N/A 9.8 mm0.386 in
N/A Ornilock Aluminum 6.5 Millimeter (mm) Diameter and 14.2 Millimeter (mm) Body Length Protruding Head Rivet N/A 6.5 mm1/4 in N/A 6.62 to 6.9 mm0.260 to 0.271 in N/A 2.8 mm0.110 in N/A 13.0 mm0.512 in
N/A Ornilock Aluminum 6.5 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Protruding Head Rivet N/A 6.5 mm1/4 in N/A 6.62 to 6.9 mm0.260 to 0.271 in N/A 2.8 mm0.110 in N/A 13.0 mm0.512 in
N/A Ornilock Aluminum 6.5 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Protruding Head Rivet N/A 6.5 mm1/4 in N/A 6.62 to 6.9 mm0.260 to 0.271 in N/A 2.8 mm0.110 in N/A 13.0 mm0.512 in
N/A Ornilock Aluminum 7.8 Millimeter (mm) Diameter and 21.0 Millimeter (mm) Body Length Protruding Head Rivet N/A 7.8 mm5/16 in N/A 8.0 to 8.3 mm0.315 to 0.327 in N/A 3.5 mm0.140 in N/A 16 mm0.630 in
N/A Ornilock Aluminum 9.8 Millimeter (mm) Diameter and 21.0 Millimeter (mm) Body Length Protruding Head Rivet N/A 9.8 mm3/8 in N/A 10.0 to 10.4 mm0.394 to 0.409 in N/A 4.5 mm0.177 in N/A 19.0 mm0.748 in
