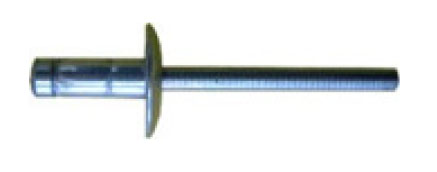

  • Orlock™ Steel X Large Head Rivets
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 6.4 Millimeter (mm) Diameter and 12.5 Millimeter (mm) Body Length X Large Head Rivet N/A 12.5 mm0.492 in N/A 4.8 mm0.189 in N/A 6.8 mm0.268 in N/A 1040 kgf2288 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length X Large Head Rivet N/A 14.5 mm0.571 in N/A 6.8 mm0.268 in N/A 8.8 mm0.346 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length X Large Head Rivet N/A 16.5 mm0.650 in N/A 8.8 mm0.346 in N/A 10.8 mm0.425 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 18.5 Millimeter (mm) Body Length X Large Head Rivet N/A 18.5 mm0.728 in N/A 10.8 mm0.425 in N/A 12.8 mm0.504 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length X Large Head Rivet N/A 20.5 mm0.807 in N/A 12.8 mm0.504 in N/A 14.8 mm0.583 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 22.5 Millimeter (mm) Body Length X Large Head Rivet N/A 22.5 mm0.886 in N/A 14.8 mm0.583 in N/A 16.8 mm0.661 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 24.5 Millimeter (mm) Body Length X Large Head Rivet N/A 24.5 mm0.965 in N/A 16.8 mm0.661 in N/A 18.8 mm0.740 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 26.5 Millimeter (mm) Body Length X Large Head Rivet N/A 26.5 mm1.043 in N/A 18.8 mm0.740 in N/A 20.8 mm0.819 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 28.5 Millimeter (mm) Body Length X Large Head Rivet N/A 28.5 mm1.122 in N/A 20.8 mm0.819 in N/A 22.8 mm0.898 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 30.5 Millimeter (mm) Body Length X Large Head Rivet N/A 30.5 mm1.201 in N/A 22.8 mm0.898 in N/A 24.8 mm0.976 in N/A 1140 kgf2508 lbf
