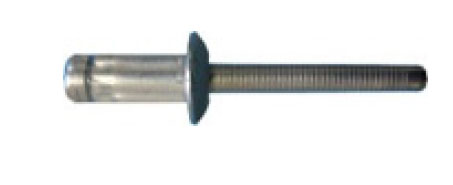

  • Orlock™ Steel Plywood X-Large Head Rivets
Interior - Seats
The Orlock™ fastener is a structural rivet and features a double-locking system that enables the rivet to safely secure the seats.

Side Frame
The Orlock™ fastener is an excellent choice for your trailer frame. The Orlock™ is designed to support exceptionally high shear and tensile forces. Its retained stem provides a strong, vibration-resistant joint.

Front Frame
The Orlock™ structural rivet provides great shear and tensile forces to create a highly secure double locking system, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.

Hinges, Axis, Locking System
The Orlock™ fastener, with its double-locking system, provides high shear and tensile forces to create a highly secure, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 24.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 24.5 mm0.965 in N/A 14.8 mm0.583 in N/A 16.8 mm0.661 in N/A 1140 kgf2514 lbf
N/A Orlock™ 26.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 26.5 mm1.043 in N/A 16.8 mm0.661 in N/A 18.8 mm0.740 in N/A 1140 kgf2514 lbf
N/A Orlock™ 28.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 28.5 mm1.122 in N/A 18.8 mm0.740 in N/A 20.8 mm0.819 in N/A 1140 kgf2514 lbf
N/A Orlock™ 31.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 31.5 mm1.240 in N/A 20.8 mm0.819 in N/A 22.8 mm0.898 in N/A 1140 kgf2514 lbf
N/A Orlock™ 33.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 33.5 mm1.319 in N/A 22.8 mm0.898 in N/A 24.8 mm0.976 in N/A 1140 kgf2514 lbf
N/A Orlock™ 36.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 36.5 mm1.437 in N/A 24.8 mm0.976 in N/A 26.8 mm1.055 in N/A 1140 kgf2514 lbf
N/A Orlock™ 38.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 38.5 mm1.516 in N/A 26.8 mm1.055 in N/A 28.8 mm1.134 in N/A 1140 kgf2514 lbf
N/A Orlock™ 40.5 Millimeter (mm) Body Length Steel Plywood X-Large Head Rivet N/A 40.5 mm1.594 in N/A 28.8 mm1.134 in N/A 30.8 mm1.213 in N/A 1140 kgf2514 lbf
