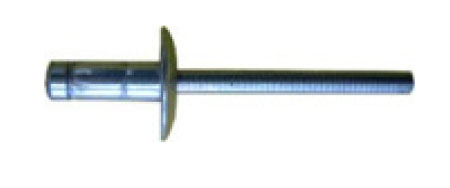

  • Orlock™ Steel Large Head Rivets
Interior - Seats
The Orlock™ fastener is a structural rivet and features a double-locking system that enables the rivet to safely secure the seats.

Side Frame
The Orlock™ fastener is an excellent choice for your trailer frame. The Orlock™ is designed to support exceptionally high shear and tensile forces. Its retained stem provides a strong, vibration-resistant joint.

Front Frame
The Orlock™ structural rivet provides great shear and tensile forces to create a highly secure double locking system, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.

Hinges, Axis, Locking System
The Orlock™ fastener, with its double-locking system, provides high shear and tensile forces to create a highly secure, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 4.8 Millimeter (mm) Diameter and 9.0 Millimeter (mm) Body Length Steel Large Head Rivet N/A 9.0 mm0.354 in N/A 1.5 mm0.059 in N/A 3.5 mm0.138 in N/A 460 kgf1012 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 11.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 11.5 mm0.453 in N/A 3.5 mm0.138 in N/A 6.0 mm0.236 in N/A 570 kgf1254 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 14.0 Millimeter (mm) Body Length Steel Large Head Rivet N/A 14.0 mm0.551 in N/A 6.0 mm0.236 in N/A 8.5 mm0.335 in N/A 640 kgf1408 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 16.5 mm0.650 in N/A 8.5 mm0.335 in N/A 11.0 mm0.433 in N/A 640 kgf1408 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 19.0 Millimeter (mm) Body Length Steel Large Head Rivet N/A 19.0 mm0.748 in N/A 11.0 mm0.433 in N/A 13.5 mm0.531 in N/A 640 kgf1408 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 10.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 10.5 mm0.413 in N/A 2.8 mm0.110 in N/A 4.8 mm0.189 in N/A 940 kgf2068 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 12.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 12.5 mm0.492 in N/A 4.8 mm0.189 in N/A 6.8 mm0.268 in N/A 1040 kgf2288 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 14.5 mm0.571 in N/A 6.8 mm0.268 in N/A 8.8 mm0.346 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 16.5 mm0.650 in N/A 8.8 mm0.346 in N/A 10.8 mm0.425 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 18.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 18.5 mm0.728 in N/A 10.8 mm0.425 in N/A 12.8 mm0.504 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 20.5 mm0.807 in N/A 12.8 mm0.504 in N/A 14.8 mm0.583 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 22.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 22.5 mm0.886 in N/A 14.8 mm0.583 in N/A 16.8 mm0.661 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 24.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 24.5 mm0.964 in N/A 16.8 mm0.661 in N/A 18.8 mm0.740 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 26.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 26.5 mm1.043 in N/A 18.8 mm0.740 in N/A 20.8 mm0.819 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 28.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 28.5 mm1.122 in N/A 20.8 mm0.819 in N/A 22.8 mm0.898 in N/A 1140 kgf2508 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 30.5 Millimeter (mm) Body Length Steel Large Head Rivet N/A 30.5 mm1.200 in N/A 22.8 mm0.898 in N/A 24.8 mm0.976 in N/A 1140 kgf2508 lbf
