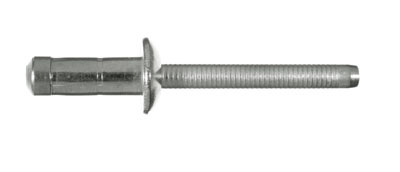

  • Orlock™ Stainless Steel Protruding Head Rivets
Rear Frame
The Orlock™ Stainless Steel fastener is commonly used by various trailer manufacturers worldwide. This stainless steel fastener creates a permanent, secure joint in the most severe climate conditions. Also available in 316.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 4.8 Millimeter (mm) Diameter and 9.0 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 9.0 mm0.354 in N/A 1.5 mm0.059 in N/A 3.5 mm0.138 in N/A 620 kgf1367 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 11.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 11.5 mm0.453 in N/A 3.5 mm0.138 in N/A 6.0 mm0.236 in N/A 700 kgf1544 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 14.0 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 14.0 mm0.551 in N/A 6.0 mm0.236 in N/A 8.5 mm0.335 in N/A 700 kgf1544 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 16.5 mm0.650 in N/A 8.5 mm0.335 in N/A 11.0 mm0.433 in N/A 700 kgf1544 lbf
N/A Orlock™ 4.8 Millimeter (mm) Diameter and 19.0 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 19.0 mm0.748 in N/A 11.0 mm0.433 in N/A 13.0 mm0.512 in N/A 700 kgf1544 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 10.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 10.5 mm0.413 in N/A 2.0 mm0.079 in N/A 4.5 mm0.177 in N/A 1440 kgf3175 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 12.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 12.5 mm0.492 in N/A 4.0 mm0.157 in N/A 6.5 mm0.256 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 14.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 14.5 mm0.571 in N/A 5.0 mm0.197 in N/A 8.5 mm0.335 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 16.5 mm0.650 in N/A 7.0 mm0.276 in N/A 10.5 mm0.413 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 18.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 18.5 mm0.728 in N/A 9.0 mm0.354 in N/A 12.5 mm0.492 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 20.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 20.5 mm0.807 in N/A 11.0 mm0.433 in N/A 14.0 mm0.551 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 22.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 22.5 mm0.886 in N/A 13.0 mm0.512 in N/A 16.0 mm0.630 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 24.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 24.5 mm0.965 in N/A 16.0 mm0.630 in N/A 18.0 mm0.709 in N/A 1480 kgf3263 lbf
N/A Orlock™ 6.4 Millimeter (mm) Diameter and 26.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 26.5 mm1.043 in N/A 18.0 mm0.709 in N/A 20.0 mm0.787 in N/A 1480 kgf3263 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 13.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 13.5 mm0.531 in N/A 4.0 mm0.157 in N/A 7.0 mm0.276 in N/A 2050 kgf4520 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 16.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 16.5 mm0.650 in N/A 7.0 mm0.276 in N/A 10.0 mm0.394 in N/A 2200 kgf4851 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 19.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 19.5 mm0.768 in N/A 10.0 mm0.394 in N/A 13.0 mm0.512 in N/A 2200 kgf4851 lbf
N/A Orlock™ 7.8 Millimeter (mm) Diameter and 22.5 Millimeter (mm) Body Length Stainless Steel Protruding Head Rivet N/A 22.5 mm0.886 in N/A 13.0 mm0.512 in N/A 16.0 mm0.630 in N/A 2200 kgf4851 lbf
