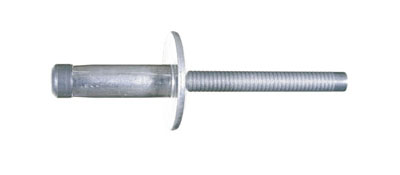

  • Orlock™ Aluminum X-Large Head Rivets
Doors
The Orlock™ aluminum, structural fastener is used in a variety of joint applications. The Orlock™ fastener provides high shear and tensile forces and creates a secure, vibration-resistance joint.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 9.0 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 9.0 mm0.354 in N/A 1.5 mm0.059 in N/A 3.5 mm0.138 in N/A 310 kgf682 lbf
N/A Orlock™ 10.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 10.5 mm0.413 in N/A 2.8 mm0.110 in N/A 4.8 mm0.189 in N/A 430 kgf946 lbf
N/A Orlock™ 11.1 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 11.1 mm0.437 in N/A 3.4 mm0.134 in N/A 5.4 mm0.213 in N/A 430 kgf946 lbf
N/A Orlock™ 12.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 12.5 mm0.492 in N/A 4.8 mm0.189 in N/A 6.8 mm0.268 in N/A 460 kgf1012 lbf
N/A Orlock™ 14.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 14.5 mm0.571 in N/A 6.8 mm0.268 in N/A 8.8 mm0.346 in N/A 500 kgf1100 lbf
N/A Orlock™ 16.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 16.5 mm0.650 in N/A 8.8 mm0.346 in N/A 10.8 mm0.425 in N/A 500 kgf1100 lbf
N/A Orlock™ 18.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 18.5 mm0.728 in N/A 10.8 mm0.425 in N/A 12.8 mm0.504 in N/A 500 kgf1100 lbf
N/A Orlock™ 20.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 20.5 mm0.807 in N/A 12.8 mm0.504 in N/A 14.8 mm0.583 in N/A 500 kgf1100 lbf
N/A Orlock™ 22.5 Millimeter (mm) Body Length Aluminum X-Large Head Rivet N/A 22.5 mm0.886 in N/A 14.8 mm0.583 in N/A 16.8 mm0.661 in N/A 500 kgf1100 lbf
