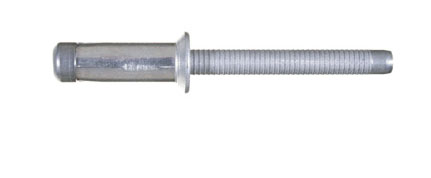

  • Orlock™ Aluminum 100 Degree Countersunk Head Rivets
Doors
The Orlock™ aluminum, structural fastener is used in a variety of joint applications. The Orlock™ fastener provides high shear and tensile forces and creates a secure, vibration-resistance joint.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Body Length

Minimum Grip Range

Maximum Grip Range

Nominal Shear Force

N/A Orlock™ 11.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 11.5 mm0.453 in N/A 3.8 mm0.150 in N/A 5.8 mm0.228 in N/A 280 kgf616 lbf
N/A Orlock™ 13.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 13.5 mm0.531 in N/A 5.8 mm0.228 in N/A 7.8 mm0.307 in N/A 380 kgf836 lbf
N/A Orlock™ 15.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 15.5 mm0.610 in N/A 7.8 mm0.307 in N/A 9.8 mm0.386 in N/A 430 kgf946 lbf
N/A Orlock™ 17.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 17.5 mm0.689 in N/A 9.8 mm0.386 in N/A 11.8 mm0.465 in N/A 500 kgf1100 lbf
N/A Orlock™ 18.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 18.5 mm0.728 in N/A 11.8 mm0.465 in N/A 13.8 mm0.543 in N/A 500 kgf1100 lbf
N/A Orlock™ 21.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 21.5 mm0.846 in N/A 13.8 mm0.543 in N/A 15.8 mm0.622 in N/A 500 kgf1100 lbf
N/A Orlock™ 23.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 23.5 mm0.925 in N/A 15.8 mm0.622 in N/A 17.8 mm0.701 in N/A 500 kgf1100 lbf
N/A Orlock™ 25.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 25.5 mm1.004 in N/A 17.8 mm0.701 in N/A 19.8 mm0.780 in N/A 500 kgf1100 lbf
N/A Orlock™ 27.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 27.5 mm1.083 in N/A 19.8 mm0.780 in N/A 21.8 mm0.858 in N/A 500 kgf1100 lbf
N/A Orlock™ 29.5 Millimeter (mm) Body Length Aluminum 100 Degree Countersunk Head Rivet N/A 29.5 mm1.161 in N/A 21.8 mm0.858 in N/A 23.8 mm0.937 in N/A 500 kgf1100 lbf
