U-Fix Aluminum Steel X-Large Head Rivets
Email This Page
Download PDF
Download PDF
Printable Page

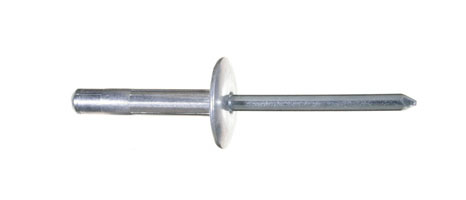

U-Fix Aluminum Steel X-Large Head Rivets
Standard Rivets
/Asset/a1003.jpg
Close Window
1 - 10 of 10
|
Results Per Page
25
50
100
200
|
View
|
Unit of Measure
Imperial
Metric
Both
1
Request Information
Compare Items
Item #
Item Name
Body Length
Minimum Grip Range
Maximum Grip Range
Nominal Shear Force
U32080X
/Asset/a1003.jpg
N/A
3.2 Millimeter (mm) Diameter and 8.0 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
8.0 mm
0.315 in
Minimum Grip Range
N/A
0.8 mm
0.031 in
Maximum Grip Range
N/A
4.8 mm
0.189 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U32095X
/Asset/a1003.jpg
N/A
3.2 Millimeter (mm) Diameter and 9.5 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
9.5 mm
0.374 in
Minimum Grip Range
N/A
1.2 mm
0.047 in
Maximum Grip Range
N/A
6.4 mm
0.252 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U32111X
/Asset/a1003.jpg
N/A
3.2 Millimeter (mm) Diameter and 11.1 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
11.1 mm
0.437 in
Minimum Grip Range
N/A
4.0 mm
0.157 in
Maximum Grip Range
N/A
7.9 mm
0.311 in
Nominal Shear Force
N/A
75 kgf
165 lbf
U40111X
/Asset/a1003.jpg
N/A
4.0 Millimeter (mm) Diameter and 11.1 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
11.1 mm
0.437 in
Minimum Grip Range
N/A
3.2 mm
0.126 in
Maximum Grip Range
N/A
7.9 mm
0.311 in
Nominal Shear Force
N/A
116 kgf
255.2 lbf
U40127X
/Asset/a1003.jpg
N/A
4.0 Millimeter (mm) Diameter and 12.7 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
12.7 mm
0.500 in
Minimum Grip Range
N/A
4.0 mm
0.157 in
Maximum Grip Range
N/A
9.5 mm
0.374 in
Nominal Shear Force
N/A
116 kgf
255.2 lbf
U40169X
/Asset/a1003.jpg
N/A
4.0 Millimeter (mm) Diameter and 16.9 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
16.9 mm
0.665 in
Minimum Grip Range
N/A
6.4 mm
0.252 in
Maximum Grip Range
N/A
12.7 mm
0.500 in
Nominal Shear Force
N/A
116 kgf
255.2 lbf
U48103X
/Asset/a1003.jpg
N/A
4.8 Millimeter (mm) Diameter and 10.3 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
10.3 mm
0.406 in
Minimum Grip Range
N/A
1.6 mm
0.063 in
Maximum Grip Range
N/A
6.4 mm
0.252 in
Nominal Shear Force
N/A
159 kgf
350 lbf
U48151X
/Asset/a1003.jpg
N/A
4.8 Millimeter (mm) Diameter and 15.1 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
15.1 mm
0.594 in
Minimum Grip Range
N/A
4.8 mm
0.189 in
Maximum Grip Range
N/A
11.1 mm
0.437 in
Nominal Shear Force
N/A
159 kgf
350 lbf
U48169X
/Asset/a1003.jpg
N/A
4.8 Millimeter (mm) Diameter and 16.9 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
16.9 mm
0.665 in
Minimum Grip Range
N/A
6.4 mm
0.252 in
Maximum Grip Range
N/A
12.7 mm
0.500 in
Nominal Shear Force
N/A
159 kgf
350 lbf
U48248X
/Asset/a1003.jpg
N/A
4.8 Millimeter (mm) Diameter and 24.8 Millimeter (mm) Body Length U-Fix Aluminum Steel X-Large Head Rivet
Body Length
N/A
24.8 mm
0.976 in
Minimum Grip Range
N/A
12.7 mm
0.500 in
Maximum Grip Range
N/A
19.8 mm
0.780 in
Nominal Shear Force
N/A
159 kgf
350 lbf
