  • A-Series Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nuts
  • A-Series Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nuts - 2
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Minimum Grip Range

Maximum Grip Range

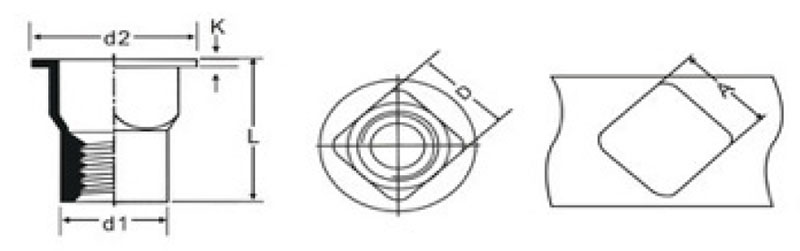

Dimension L

N/A A-Series 6.0 Millimeter (mm) Dimension D Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nut N/A M4 SW 6.0 N/A 0.5 mm N/A 2.0 mm N/A 11.0 mm
N/A A-Series 7.0 Millimeter (mm) Dimension D Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nut N/A M5 SW 7.0 N/A 0.5 mm N/A 2.0 mm N/A 11.0 mm
N/A A-Series 9.0 Millimeter (mm) Dimension D Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nut N/A M6 SW 9.0 N/A 0.5 mm N/A 2.0 mm N/A 15.0 mm
N/A A-Series 11.0 Millimeter (mm) Dimension D Semi-Hexagon Square Style Cylindrical Head (Flat) Rivet Nut N/A M8 SW 11.0 N/A 0.5 mm N/A 2.0 mm N/A 18 mm
