  • M-Series Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nuts
  • M-Series Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nuts - 2
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

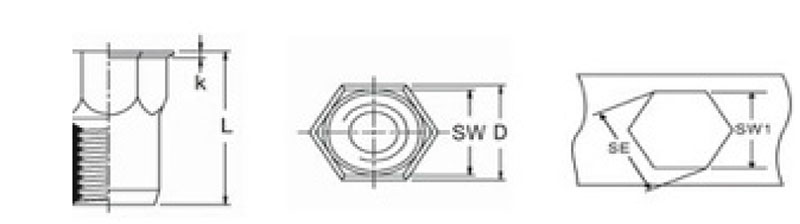

Thread Size

Dimension L

Minimum Grip Range

Maximum Grip Range

N/A M-Series M4 Thread Size Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M4 SW 6.0 N/A 12.5 mm N/A 0.5 mm N/A 3.0 mm
N/A M-Series M5 Thread Size Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M5 SW 7.0 N/A 14.0 mm N/A 0.5 mm N/A 3.0 mm
N/A M-Series M6 Thread Size Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M6 SW 9.0 N/A 16.0 mm N/A 0.5 mm N/A 3.0 mm
N/A M-Series M8 Thread Size Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M8 SW 11.0 N/A 17.0 mm N/A 0.5 mm N/A 3.0 mm
N/A M-Series M10 Thread Size Semi-Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M10 SW 13.0 N/A 20.5 mm N/A 1.0 mm N/A 4.0 mm
