Catalog

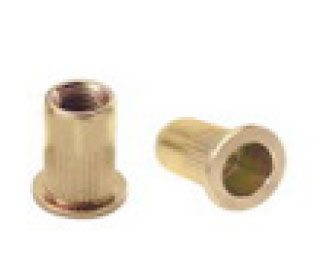

  • P-Series Open End Cylindrical Head (Flat) Rivet Nuts with Serration
  • P-Series Open End Cylindrical Head (Flat) Rivet Nuts with Serration - 2
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Dimension L

Minimum Grip Range

Maximum Grip Range

N/A P-Series 11.0 Millimeter (mm) Dimension L and M4 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M4 N/A 11.0 mm N/A 0.5 mm N/A 1.5 mm
N/A P-Series 12.0 Millimeter (mm) Dimension L and M4 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M4 N/A 12.0 mm N/A 1.5 mm N/A 2.5 mm
N/A P-Series 13.0 Millimeter (mm) Dimension L and M4 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M4 N/A 13.0 mm N/A 2.5 mm N/A 3.5 mm
N/A P-Series 12.0 Millimeter (mm) Dimension L and M5 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M5 N/A 12.0 mm N/A 0.5 mm N/A 1.5 mm
N/A P-Series 13.0 Millimeter (mm) Dimension L and M5 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M5 N/A 13.0 mm N/A 1.5 mm N/A 2.5 mm
N/A P-Series 14.0 Millimeter (mm) Dimension L and M5 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M5 N/A 14.0 mm N/A 2.5 mm N/A 3.5 mm
N/A P-Series 15.5 Millimeter (mm) Dimension L and M6 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M6 N/A 15.5 mm N/A 0.5 mm N/A 2.5 mm
N/A P-Series 17.0 Millimeter (mm) Dimension L and M6 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M6 N/A 17.0 mm N/A 2.5 mm N/A 4.0 mm
N/A P-Series 17.0 Millimeter (mm) Dimension L and M8 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M8 N/A 17.0 mm N/A 1.0 mm N/A 2.5 mm
N/A P-Series 18.5 Millimeter (mm) Dimension L and M8 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration N/A M8 N/A 18.5 mm N/A 2.5 mm N/A 4.0 mm
