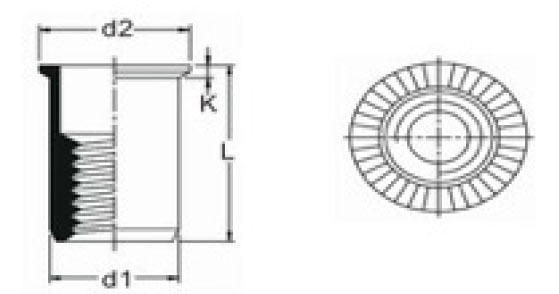

  • F-Series Open End Reduced Countersunk Head (Small) Rivet Nuts
  • F-Series Open End Reduced Countersunk Head (Small) Rivet Nuts - 2
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Minimum Grip Range

Maximum Grip Range

Hole Size

N/A F-Series 9.0 Millimeter (mm) Dimension L Open End Reduced Countersunk Head (Small) Rivet Nut N/A M3 N/A 0.5 mm N/A 1.5 mm N/A 4.9 mm
N/A F-Series 10.4 Millimeter (mm) Dimension L Open End Reduced Countersunk Head (Small) Rivet Nut N/A M4 N/A 0.5 mm N/A 1.5 mm N/A 6.4 mm
N/A F-Series 12.0 Millimeter (mm) Dimension L Open End Reduced Countersunk Head (Small) Rivet Nut N/A M5 N/A 0.5 mm N/A 2.0 mm N/A 7.2 mm
N/A F-Series 15.0 Millimeter (mm) Dimension L Open End Reduced Countersunk Head (Small) Rivet Nut N/A M6 N/A 0.8 mm N/A 2.5 mm N/A 9.6 mm
N/A F-Series 16.0 Millimeter (mm) Dimension L Open End Reduced Countersunk Head (Small) Rivet Nut N/A M8 N/A 1.0 mm N/A 3.0 mm N/A 10.6 mm
