  • M-Series Closed End Countersunk Head (Large) Rivet Nuts
  • M-Series Closed End Countersunk Head (Large) Rivet Nuts - 2
1 - 19 of 19 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

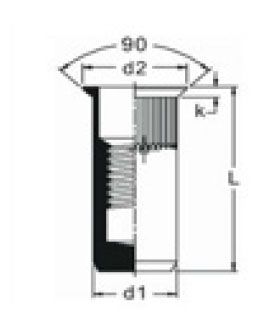

Dimension L

Minimum Grip Range

Maximum Grip Range

N/A M-Series 16.5 Millimeter (mm) Dimension L and M3 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M3 N/A 16.5 mm N/A 1.5 mm N/A 3.5 mm
N/A M-Series 17.5 Millimeter (mm) Dimension L and M3 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M3 N/A 17.5 mm N/A 3.5 mm N/A 5.0 mm
N/A M-Series 18.0 Millimeter (mm) Dimension L and M4 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M4 N/A 18 mm N/A 1.5 mm N/A 4.0 mm
N/A M-Series 20.5 Millimeter (mm) Dimension L and M4 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M4 N/A 20.5 mm N/A 4.0 mm N/A 6.5 mm
N/A M-Series 20.0 Millimeter (mm) Dimension L and M5 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M5 N/A 20.0 mm N/A 1.5 mm N/A 4.0 mm
N/A M-Series 23.0 Millimeter (mm) Dimension L and M5 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M5 N/A 23.0 mm N/A 4.0 mm N/A 6.5 mm
N/A M-Series 25.5 Millimeter (mm) Dimension L and M5 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M5 N/A 25.5 mm N/A 6.5 mm N/A 9.0 mm
N/A M-Series 23.0 Millimeter (mm) Dimension L and M6 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M6 N/A 23.0 mm N/A 1.5 mm N/A 4.0 mm
N/A M-Series 26.0 Millimeter (mm) Dimension L and M6 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M6 N/A 26.0 mm N/A 4.0 mm N/A 6.5 mm
N/A M-Series 28.5 Millimeter (mm) Dimension L and M6 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M6 N/A 28.5 mm N/A 6.5 mm N/A 9.0 mm
N/A M-Series 27.5 Millimeter (mm) Dimension L and M8 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M8 N/A 27.5 mm N/A 1.5 mm N/A 4.0 mm
N/A M-Series 30.0 Millimeter (mm) Dimension L and M8 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M8 N/A 30 mm N/A 4.0 mm N/A 6.5 mm
N/A M-Series 32.5 Millimeter (mm) Dimension L and M8 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M8 N/A 32.5 mm N/A 6.5 mm N/A 9.0 mm
N/A M-Series 30.5 Millimeter (mm) Dimension L and M10 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M10 N/A 30.5 mm N/A 2.0 mm N/A 4.5 mm
N/A M-Series 33.5 Millimeter (mm) Dimension L and M10 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M10 N/A 33.5 mm N/A 4.5 mm N/A 7.5 mm
N/A M-Series 36.5 Millimeter (mm) Dimension L and M10 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M10 N/A 36.5 mm N/A 7.5 mm N/A 10.5 mm
N/A M-Series 35.0 Millimeter (mm) Dimension L and M12 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M12 N/A 35.0 mm N/A 2.0 mm N/A 4.5 mm
N/A M-Series 38.0 Millimeter (mm) Dimension L and M12 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M12 N/A 38.0 mm N/A 4.5 mm N/A 7.5 mm
N/A M-Series 41.0 Millimeter (mm) Dimension L and M12 Thread Size Closed End Countersunk Head (Large) Rivet Nut N/A M12 N/A 41.0 mm N/A 7.5 mm N/A 10.5 mm
