Item #

Item Name

Thread Size

Minimum Grip Range

Maximum Grip Range

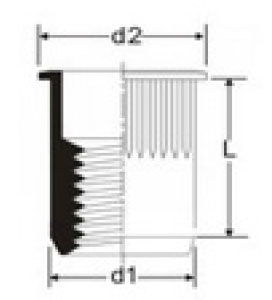

Dimension L

N/A K-Series 10.67 Millimeter (mm) Dimension L and M4 Thread Size Open End Rivet Nut N/A M4 N/A 0.5 mm N/A 2.0 mm N/A 10.67 mm
N/A K-Series 11.94 Millimeter (mm) Dimension L and M4 Thread Size Open End Rivet Nut N/A M4 N/A 2.0 mm N/A 3.3 mm N/A 11.94 mm
N/A K-Series 12.07 Millimeter (mm) Dimension L and M5 Thread Size Open End Rivet Nut N/A M5 N/A 0.5 mm N/A 3.3 mm N/A 12.07 mm
N/A K-Series 14.86 Millimeter (mm) Dimension L and M5 Thread Size Open End Rivet Nut N/A M5 N/A 3.3 mm N/A 5.7 mm N/A 14.86 mm
N/A K-Series 14.73 Millimeter (mm) Dimension L and M6 Thread Size Open End Rivet Nut N/A M6 N/A 0.7 mm N/A 4.2 mm N/A 14.73 mm
N/A K-Series 17.27 Millimeter (mm) Dimension L and M6 Thread Size Open End Rivet Nut N/A M6 N/A 4.2 mm N/A 6.6 mm N/A 17.27 mm
N/A K-Series 17.53 Millimeter (mm) Dimension L and M8 Thread Size Open End Rivet Nut N/A M8 N/A 0.7 mm N/A 3.8 mm N/A 17.53 mm
N/A K-Series 20.45 Millimeter (mm) Dimension L and M8 Thread Size Open End Rivet Nut N/A M8 N/A 3.8 mm N/A 7.9 mm N/A 20.45 mm
N/A K-Series 17.53 Millimeter (mm) Dimension L and M10 Thread Size Open End Rivet Nut N/A M10 N/A 0.7 mm N/A 3.8 mm N/A 17.53 mm
N/A K-Series 20.45 Millimeter (mm) Dimension L and M10 Thread Size Open End Rivet Nut N/A M10 N/A 3.8 mm N/A 7.9 mm N/A 20.45 mm
