K-Series Open End Countersunk Head (AK) Rivet Nuts On Ornit USA

Catalog

1 - 20 of 20 | Results Per Page | View | Unit of Measure

Request Information Compare Items

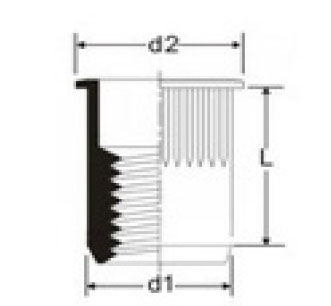

Item #	Item Name	Thread Size	Dimension L	Minimum Grip Range	Maximum Grip Range

ORIC-06042-AK	N/A K-Series 0.420 Inch (in) Dimension L and #6-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #6-32	N/A 0.420 in	N/A 0.020 in	N/A 0.080 in
ORIC-06047-AK	N/A K-Series 0.470 Inch (in) Dimension L and #6-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #6-32	N/A 0.470 in	N/A 0.080 in	N/A 0.130 in
ORIC-08042-AK	N/A K-Series 0.420 Inch (in) Dimension L and #8-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #8-32	N/A 0.420 in	N/A 0.020 in	N/A 0.080 in
ORIC-08047-AK	N/A K-Series 0.470 Inch (in) Dimension L and #8-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #8-32	N/A 0.470 in	N/A 0.080 in	N/A 0.130 in
ORIC-10047-AK	N/A K-Series 0.475 Inch (in) Dimension L and #10-24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #10-24	N/A 0.475 in	N/A 0.020 in	N/A 0.130 in
ORIC-10058-AK	N/A K-Series 0.585 Inch (in) Dimension L and #10-24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #10-24	N/A 0.585 in	N/A 0.130 in	N/A 0.225 in
ORFC-10047-FAK	N/A K-Series 0.475 Inch (in) Dimension L and #10-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #10-32	N/A 0.475 in	N/A 0.020 in	N/A 0.130 in
ORFC-10058-FAK	N/A K-Series 0.585 Inch (in) Dimension L and #10-32 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A #10-32	N/A 0.585 in	N/A 0.130 in	N/A 0.225 in
ORIC-20058-AK	N/A K-Series 0.580 Inch (in) Dimension L and 1/4 in. - 20 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 1/4-20	N/A 0.580 in	N/A 0.027 in	N/A 0.165 in
ORIC-20068-AK	N/A K-Series 0.680 Inch (in) Dimension L and 1/4 in. - 20 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 1/4-20	N/A 0.680 in	N/A 0.165 in	N/A 0.260 in
ORFC-20058-FAK	N/A K-Series 0.580 Inch (in) Dimension L and 1/4 in. - 28 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 1/4-28	N/A 0.580 in	N/A 0.027 in	N/A 0.165 in
ORFC-20068-FAK	N/A K-Series 0.680 Inch (in) Dimension L and 1/4 in. - 28 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 1/4-28	N/A 0.680 in	N/A 0.165 in	N/A 0.260 in
ORIC-25069-AK	N/A K-Series 0.690 Inch (in) Dimension L and 5/16 in. - 18 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 5/16-18	N/A 0.690 in	N/A 0.027 in	N/A 0.150 in
ORIC-25080-AK	N/A K-Series 0.805 Inch (in) Dimension L and 5/16 in. - 18 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 5/16-18	N/A 0.805 in	N/A 0.150 in	N/A 0.312 in
ORFC-25069-FAK	N/A K-Series 0.690 Inch (in) Dimension L and 5/16 in. - 24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 5/16-24	N/A 0.690 in	N/A 0.027 in	N/A 0.150 in
ORFC-25080-FAK	N/A K-Series 0.805 Inch (in) Dimension L and 5/16 in. - 24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 5/16-24	N/A 0.805 in	N/A 0.150 in	N/A 0.312 in
ORIC-30069-AK	N/A K-Series 0.690 Inch (in) Dimension L and 3/8 in. - 16 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 3/8-16	N/A 0.690 in	N/A 0.027 in	N/A 0.150 in
ORIC-30080-AK	N/A K-Series 0.805 Inch (in) Dimension L and 3/8 in. - 16 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 3/8-16	N/A 0.805 in	N/A 0.150 in	N/A 0.312 in
ORFC-30069-FAK	N/A K-Series 0.690 Inch (in) Dimension L and 3/8 in. - 24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 3/8-24	N/A 0.690 in	N/A 0.027 in	N/A 0.150 in
ORFC-30080-FAK	N/A K-Series 0.805 Inch (in) Dimension L and 3/8 in. - 24 Thread Size Open End Countersunk Head (AK) Rivet Nut	N/A 3/8-24	N/A 0.805 in	N/A 0.150 in	N/A 0.312 in
