  • A-Series Full Hexagon Reduced Countersunk Head (Small) Rivet Nuts
  • A-Series Full Hexagon Reduced Countersunk Head (Small) Rivet Nuts - 2
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Minimum Grip Range

Maximum Grip Range

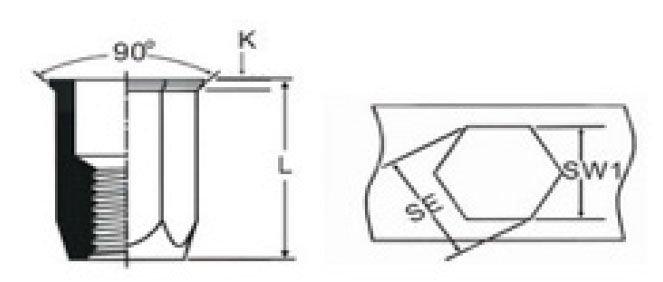

Dimension L

N/A A-Series 12.0 Millimeter (mm) Dimension L Full Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M4 SW 6.0 N/A 0.5 mm N/A 3.0 mm N/A 12.0 mm
N/A A-Series 14.0 Millimeter (mm) Dimension L Full Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M5 SW 7.0 N/A 0.5 mm N/A 3.0 mm N/A 14.0 mm
N/A A-Series 16.0 Millimeter (mm) Dimension L Full Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M6 SW 9.0 N/A 0.5 mm N/A 3.0 mm N/A 16.0 mm
N/A A-Series 18.0 Millimeter (mm) Dimension L Full Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M8 SW 11.0 N/A 0.5 mm N/A 3.0 mm N/A 18 mm
N/A A-Series 22.0 Millimeter (mm) Dimension L Full Hexagon Reduced Countersunk Head (Small) Rivet Nut N/A M10 SW 13.0 N/A 0.5 mm N/A 3.0 mm N/A 22.0 mm
