  • F-Series Open End Cylindrical Head (Flat) Rivet Nuts
  • F-Series Open End Cylindrical Head (Flat) Rivet Nuts - 2
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Minimum Grip Range

Maximum Grip Range

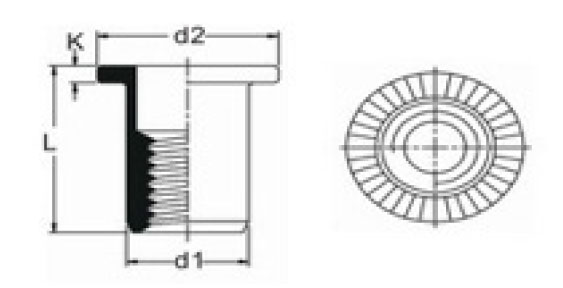

Dimension L

N/A F-Series 9.5 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M3 N/A 1.0 mm N/A 2.5 mm N/A 9.5 mm
N/A F-Series 11.0 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M4 N/A 1.0 mm N/A 2.5 mm N/A 11.0 mm
N/A F-Series 13.5 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M5 N/A 0.5 mm N/A 3.0 mm N/A 13.5 mm
N/A F-Series 14.5 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M6 N/A 1.0 mm N/A 2.5 mm N/A 14.5 mm
N/A F-Series 16.5 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M6 N/A 2.5 mm N/A 4.0 mm N/A 16.5 mm
N/A F-Series 18.0 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M8 N/A 0.8 mm N/A 3.5 mm N/A 18 mm
N/A F-Series 19.5 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M10 N/A 1.0 mm N/A 3.5 mm N/A 19.5 mm
N/A F-Series 22.0 Millimeter (mm) Dimension L Open End Cylindrical Head (Flat) Rivet Nut N/A M10 N/A 3.5 mm N/A 6.0 mm N/A 22.0 mm
