Interior - Seats

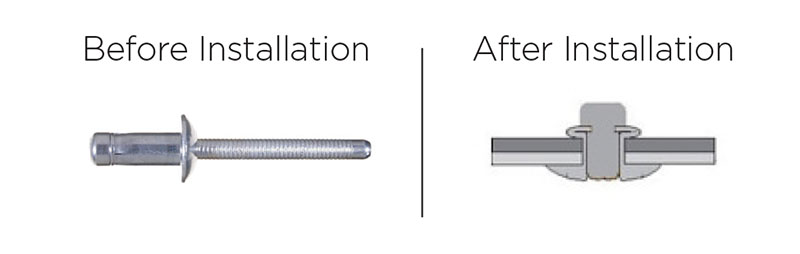

The Orlock™ fastener is a structural rivet and features a double-locking system that enables the rivet to safely secure the seats.

Side Frame
The Orlock™ fastener is an excellent choice for your trailer frame. The Orlock™ is designed to support exceptionally high shear and tensile forces. Its retained stem provides a strong, vibration-resistant joint.

Front Frame
The Orlock™ structural rivet provides great shear and tensile forces to create a highly secure double locking system, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.

Hinges, Axis, Locking System
The Orlock™ fastener, with its double-locking system, provides high shear and tensile forces to create a highly secure, vibration-resistance joint. It is the ideal alternative to nuts, bolts and screws.
Unit of Measure

Technical Specs

Brands

 N/A Orlock™ Ornit

Body Material

 N/A Low Carbon Steel

Body Finish

 N/A Zinc Plated Chromium (Cr) VI Free

Mandrel Material

 N/A Carbon Steel

Mandrel Finish

 N/A Zinc Coated Chromium (Cr) VI Free

Carton Quantity

 N/A 3000

Head Style

 N/A Protruding

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 4.9 to 5.1 mm0.192 to 0.200 in

Head Thickness

 N/A 2.2 mm0.87 in

Head Diameter

 N/A 9.8 mm0.387 in

Mandrel Diameter

 N/A 3.02 mm0.119 in

Body Length

 N/A 9.0 mm0.354 in

Minimum Grip Range

 N/A 1.5 mm0.059 in

Maximum Grip Range

 N/A 3.5 mm0.138 in

Nominal Forces

Nominal Shear Force

 N/A 460 kgf1012 lbf

Nominal Tensile Force

 N/A 360 kgf792 lbf

Applications

Automotive Application

 N/A Seating
The Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.

Window Frame
Safety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.
