Doors
Secure assembly for a variety of door components. An aluminum alloy, multi-grip fastener with a split tail, and a large blind side area. Prevents electrical problems and corrosion.
br>Securing Rails
Securing transport goods is the most important element for truck drivers. The Or Bulb is commonly used for securing rails worldwide. An aluminum alloy, multi-grip fastener with a split tail. Excellence good soft material.
Unit of Measure

Technical Specs

Brands

 N/A Ornit

Carton Quantity

 N/A 1000

Body Material

 N/A Low Carbon Steel

Body Finish

 N/A Zinc Plated Chromium (Cr) IV Free

Mandrel Material

 N/A Carbon Steel

Mandrel Finish

 N/A Zinc Plated Chromium (Cr) IV Free

Head Style

 N/A Dome Head

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 5.0 to 5.2 mm0.196 to 0.205 in

Head Thickness

 N/A 1.80 mm0.071 in

Head Diameter

 N/A 9.8 mm0.386 in

Mandrel Diameter

 N/A 2.9 mm0.114 in

Body Length

 N/A 17.2 mm0.677 in

Minimum Grip Range

 N/A 1.0 mm0.039 in

Maximum Grip Range

 N/A 6.4 mm0.252 in

Nominal Forces

Nominal Shear Force

 N/A 204 kgf450 lbf

Nominal Tensile Force

 N/A 255 kgf561 lbf

Dimensions

Automotive Application

 N/A Interior

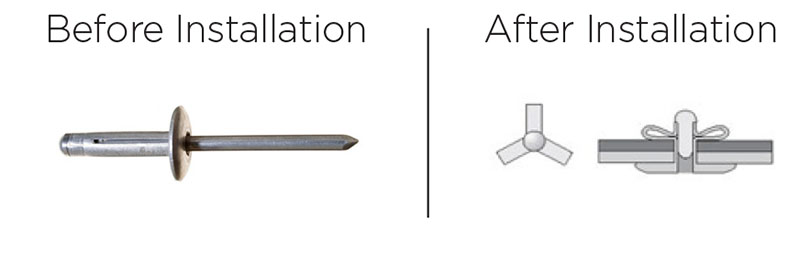

The Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
