Side Frame
The Ornilock multi-grip, structural rivet features excellent hole-fill capabilities, making it ideal for oversized, irregular or misaligned holes.

Front Frame
The Ornilock multi-grip, structural rivet features an internal-locking system ideal for oversized, irregular or misaligned holes. Flush break.

Hinges, Axis, Locking System
The Ornilock multi-grip, structural rivet features an internal-locking system making it ideal for oversized, irregular or misaligned holes.
Unit of Measure

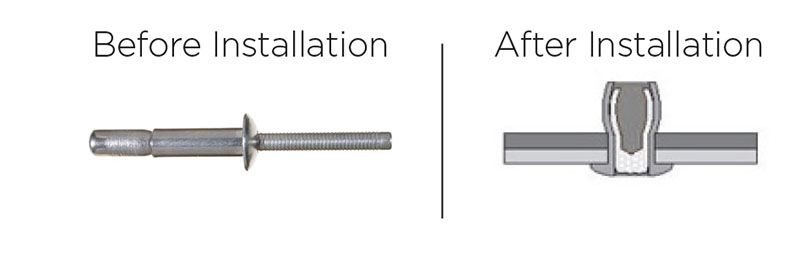

Technical Specs

Brands

 N/A Ornilock Ornit

Carton Quantity

 N/A 3000

Head Style

 N/A Protruding

Body Material

 N/A Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304

Body Finish

 N/A Natural

Mandrel Material

 N/A Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304

Mandrel Finish

 N/A Natural

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 4.9 to 5.1 mm0.192 to 0.200 in

Head Thickness

 N/A 2.1 mm0.083 in

Head Diameter

 N/A 9.8 mm0.386 in

Mandrel Diameter

 N/A 3.0 mm0.118 in

Body Length

 N/A 14.5 mm0.571 in

Minimum Grip Range

 N/A 5.4 mm0.213 in

Maximum Grip Range

 N/A 11.1 mm0.437 in

Nominal Forces

Nominal Shear Force

 N/A 590 kgf1298 lbf

Nominal Tensile Force

 N/A 430 kgf946 lbf

Applications

Renewable Energy Application

 N/A Solar Frames
This extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
