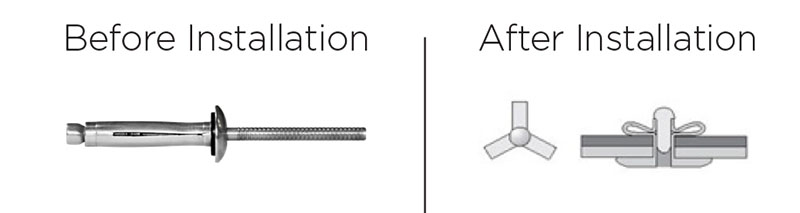

The Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Unit of Measure

Technical Specs

Brands

 N/A Ornit

Carton Quantity

 N/A 1000

Body Material

 N/A Aluminum Alloy ALmg 5.0 or Equivalent

Body Finish

 N/A Natural

Mandrel Material

 N/A Aluminum Alloy 7075 or Equivalent

Mandrel Finish

 N/A Natural

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 5.15 to 5.35 mm0.196 to 0.208 in

Head Thickness

 N/A 2.15 mm0.085 in

Head Diameter

 N/A 11.3 mm0.445 in

Mandrel Diameter

 N/A 2.6 mm0.103 in

Body Length

 N/A 24.5 mm0.965 in

Minimum Grip Range

 N/A 4.8 mm0.189 in

Maximum Grip Range

 N/A 9.5 mm0.374 in

Nominal Forces

Nominal Shear Force

 N/A 316 kgf695 lbf

Nominal Tensile Force

 N/A 203 kgf447 lbf

Note

Note

 N/A Available with Neoprene washer
