 N/A Ornit Steel-Fix

Carton Quantity

 N/A 3000

Head Style

 N/A Large

Body Material

 N/A Low Carbon Steel

Body Finish

 N/A Zinc Plated Chromium (Cr) VI Free

Mandrel Material

 N/A Carbon Steel

Mandrel Finish

 N/A Zinc Plated Chromium (Cr) VI Free

Nominal Dimensions

Diameter

 N/A 4.8 mm3/16 in

Drill/Hole Size

 N/A 4.9 mm0.193 in

Head Thickness

 N/A 1.70 mm0.067 in

Head Diameter

 N/A 14 mm0.551 in

Mandrel Diameter

 N/A 2.9 mm0.114 in

Body Length

 N/A 20.0 mm0.787 in

Minimum Grip Range

 N/A 9.0 mm0.354 in

Maximum Grip Range

 N/A 15.0 mm0.591 in

Nominal Forces

Nominal Shear Force

 N/A 450 kgf990 lbf

Nominal Tensile Force

 N/A 390 kgf858 lbf

Applications

Automotive Application

 N/A Window Frame

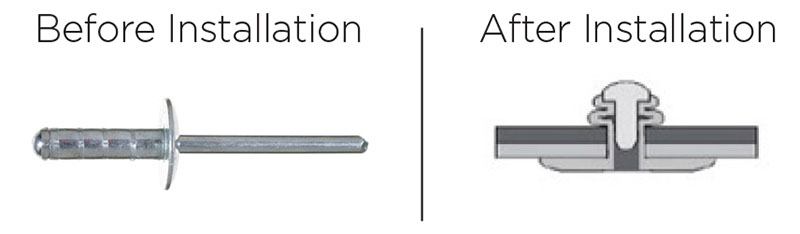

The Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
