Unit of Measure

Technical Specs

Brands

 N/A Ornit

Thread Size

 N/A M6 x 1.0 1/4 in

Material

 N/A Steel

Finish

 N/A Zinc

Dimensions

Minimum Grip Size

 N/A 0.50 mm

Maximum Grip Size

 N/A 7.10 mm

Minimum Hole Size

 N/A 8.80 mm

Maximum Hole Size

 N/A 8.93 mm

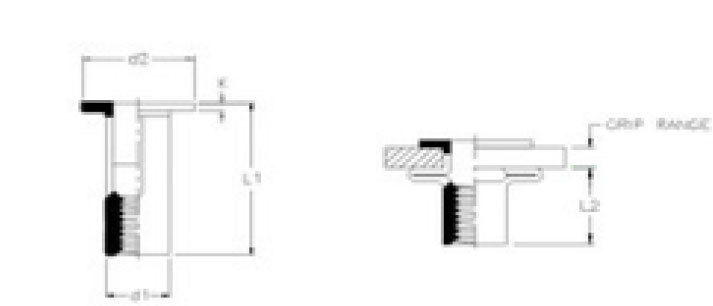

Maximum Dimension D1

 N/A 8.79 mm

Reference Dimension D2

N/A 15.9 mm

Reference Dimension K

 N/A 1.50 mm

Reference Dimension L1

 N/A 27.3 mm

Reference Dimension L2

 N/A 12.8 mm

Note

Note

 N/A Stainless Steel & Aluminum are available.
